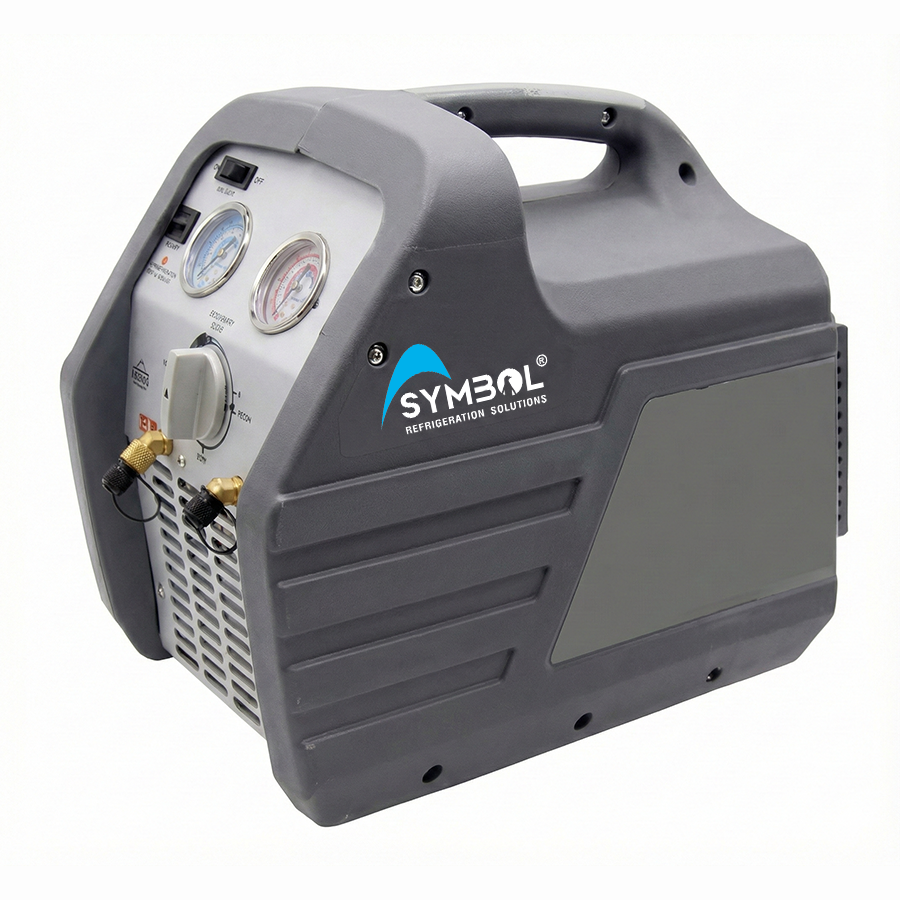

Refrigerant Recovery Unit-1HP (with Oil Separator)
Price range: ₹85,000.00 through ₹90,000.00
| Model | RR250 / RR250R32 | RR500 / RR500(R32) |
|---|---|---|
| Refrigerants | Category III: R12, R134a, R401C, R406A, R500 (R32 model suitable for R32, R1234YF) Category IV: R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509 | Category V: R402A, R404A, R407A, R407B, R410A, R507 |
| Power | 220-240VAC 50~60Hz; 110-120Vac 60Hz | |
| Motor | 3/4HP, Single Cylinder System | 1HP, Twin Cylinder System |
| Motor Speed | 1450rpm@50Hz; 1750rpm@60Hz | |
| Maximal Current Draw | 110V: 8A; 220V: 4A | 110V: 10A; 220V: 5A |
| Compressor | Oil-less, Air-cooled, Piston | |
| High Pressure Shut-off | 38.5bar / 385kPa / 558psi | |
| Recovery Rate (Kg/min) – Vapor Category III | 0.20 | – |
| Recovery Rate (Kg/min) – Vapor Category IV | 0.25 | – |
| Recovery Rate (Kg/min) – Vapor Category V | – | 0.25 |
| Recovery Rate (Kg/min) – Vapor Category IIII | – | 0.40 |
| Recovery Rate (Kg/min) – Vapor Category IVI | – | 0.50 |
| Recovery Rate (Kg/min) – Vapor Category VI | – | 0.50 |
| Recovery Rate (Kg/min) – Liquid Category III | 1.60 | – |
| Recovery Rate (Kg/min) – Liquid Category IV | 1.80 | – |
| Recovery Rate (Kg/min) – Liquid Category V | – | 2.20 |
| Recovery Rate (Kg/min) – Liquid Category IIII | – | 3.00 |
| Recovery Rate (Kg/min) – Liquid Category IVI | – | 3.50 |
| Recovery Rate (Kg/min) – Liquid Category VI | – | 3.50 |
| Recovery Rate (Kg/min) – Push/Pull Category III | 4.60 | – |
| Recovery Rate (Kg/min) – Push/Pull Category IV | 5.60 | – |
| Recovery Rate (Kg/min) – Push/Pull Category V | – | 6.30 |
| Recovery Rate (Kg/min) – Push/Pull Category IIII | – | 7.50 |
| Recovery Rate (Kg/min) – Push/Pull Category IVI | – | 8.50 |
| Recovery Rate (Kg/min) – Push/Pull Category VI | – | 9.50 |
| Operating Temperature | 0°C ~ 40°C / 32~104°F | |
| Dimensions | 400 x 250 x 360 mm | |
| Net Weight | 13.5 kg | 14.5 kg |
